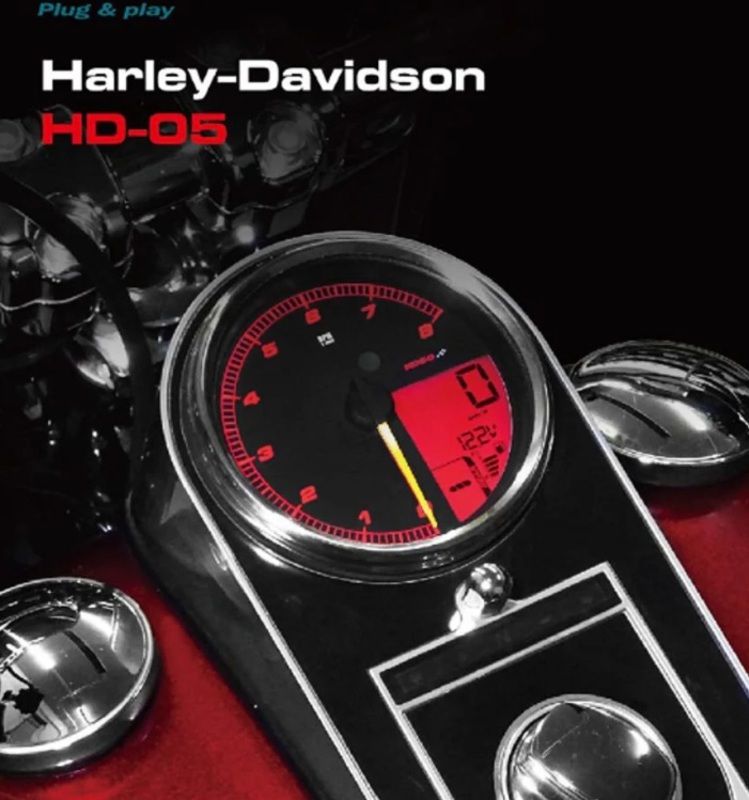

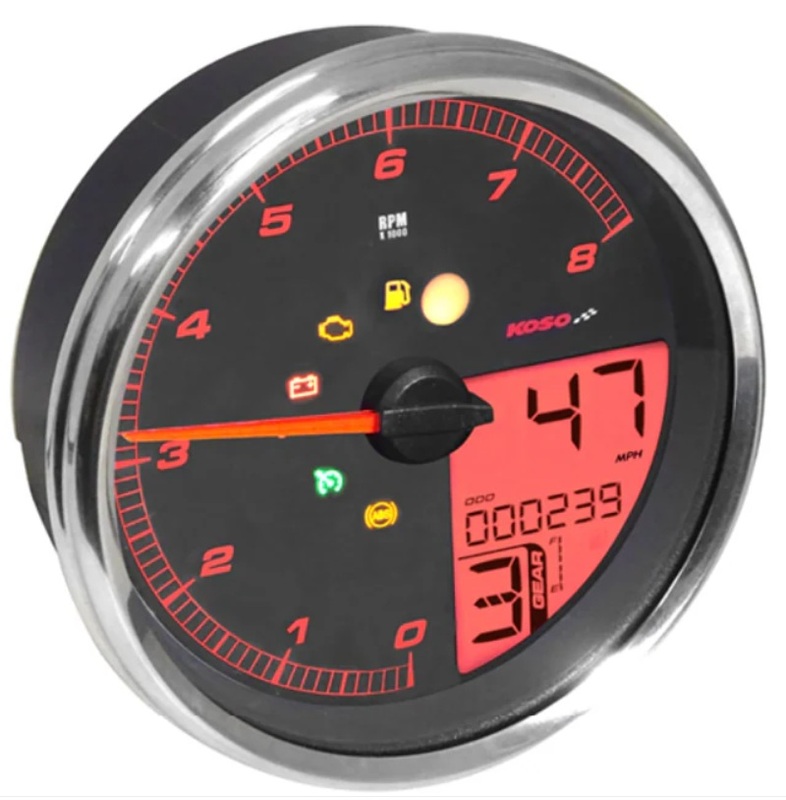

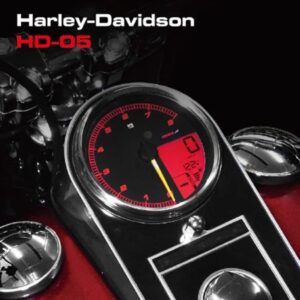

Tacómetro KOSO HD-05 para Harley-Davidson – marco plateado – BA072100

HD-05 Meter for Harley-Davidson (2014+ models) – silver rim

The new PLUG&PLAY HD-05 series for 4 ½” (11.43 cm) Harley-Davidson® models with a mounted tank includes a speedometer and tachometer in one unit . The backlight color is also changeable, and the device features a gear indicator .
The measuring device provides real-time readings such as engine temperature, battery voltage, average fuel efficiency, and a complete system of indicators to monitor your motorcycle’s vital parameters. This plug-and-play set fits perfectly with the existing wiring harness and interacts directly with your motorcycle’s CAN bus system .

Suitable for:

• Dyna models from 2004-2011

• Softail models from 2004-2010

• Road King models from 204-2013

Please note: Does not work with models that have traction control.

Characteristics:

• Speedometer : 0 ~ 225 MPH (0 ~ 360 km/h), unit 1 MPH or km/h, reaction time < 0.5 sec.

• Odometer : 0 ~ 999,999 miles (km), unit 1 mile (km)

• Trip odometer A/B : 0 ~ 9,999.9 miles (km), unit 0.1 mile (km)

• Wheel circumference : Adjustable 50 ~ 210%, unit 1%

• Gear indicator : Off / N / 1 ~ 6

• Tachometer : 0 ~ 8,000 RPM

• Rev limiter light : 2,000 ~ 8,000 RPM, unit 100 RPM, flashing warning when exceeded

• Motor temperature : 40 ~ 419°F (40 ~ 215°C)

• Fuel gauge : 6 fill levels

• Tank volume : Off / 1 ~ 9.9 US gallons (approx. 37 liters)

• Average fuel consumption : OFF / L/100 km / km/L / MPG (US) / MPG (UK)

• Clock : 12/24 H format

• Voltmeter : DC 8 ~ 18 V

• Background brightness : 1/5 (dark) to 5/5 (bright)

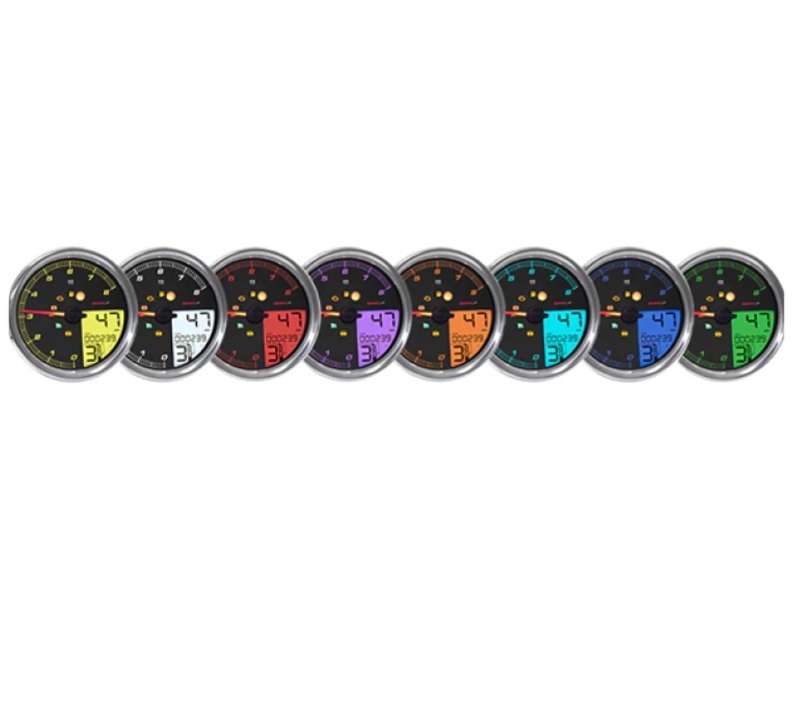

• Background colors : Red / Orange / Yellow / Green / Blue / Indigo / Purple / White

• Maintenance intervals : Off / 300 ~ 10,000 miles (500 ~ 16,000 km), unit 100 miles (km)

• Fuel reserve : 0 ~ 9,999 miles (km); warning “LO RNG” at < 10 miles (16 km)

• Warning lights : RPM warning light, low fuel light, engine warning light, voltage, anti-theft system, cruise control, ABS

• Temperature range : 14 ~ 140 °F (10 ~ 60 °C)

• Operating voltage : DC 12 V

• Standard : JIS D 0203 S2

• Size : Ø 117 x 45 mm (4 5/8” x 1 3/4”)

• Weight : 208.5 g (7.36 oz)

Table of contents:

• LCD measuring device – 1×
